Conventional Augers
Grainland sell the Wheatheart and Farm-King range of conventional grain augers. We began importing Farm-King augers from Canada in 1994, a few years later our sister company Farmrite Australia was established and we began to import Wheatheart augers as well.
Both the Farm-King and Wheatheart augers have proven to be extremely reliable, durable and well suited to Australian conditions. We assemble all our augers on site here in Moree. We know just how frustrating and costly breakdowns can be, that's why we carry a large range of spare parts on the shelf. Being centrally located means we can easily arrange transport.
Wheatheart Wear Edge Flighting
Hydraulic Drive Option
Honda or Kohler Motor
All augers come with Hopper and Drop Chute
Optional Hydraulic Mover Kit
R Series

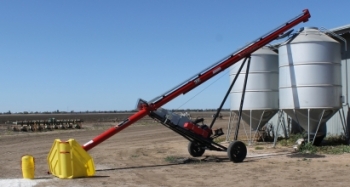

Wheatheart Conventional R Series Augers are built tough and dependable with a longer intake tube and wear-edge on the intake flighting for maximum performance and durability.
Available in 8 and 10 inch barrel sizes and lengths from 36 to 51 foot with the option of Petrol Motor, Electric or PTO drive.
Standard equipment includes reversing gearbox, grease/oil bath top drive, self leveling motor mount, drop chute and hopper. A Hydraulic mover kit option is also available.
|
|

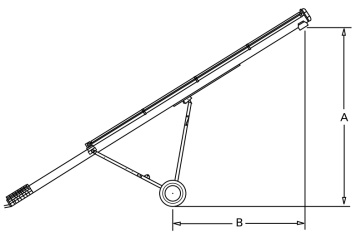

Dimension A Raised | Dimension A Lowered | Dimension B Raised | Dimension B Lowered | Tube Gauge | Flighting Gauge | Motor Options |
| 8:36 | 21' 6"
(6.55m) |
9' 7"
(2.92m) |
13'
(3.96m) |
15' 6"
(4.72m) |
14ga (1.9mm) | 10ga
(3.42mm) |
Honda GX630
Kohler 23hp |
| 8:41 | 24' 8"
(7.51m) |
9' 6"
(2.9m) |
15'
(4.57m) |
17' 6"
(5.33m) |
14ga (1.9mm) | 10ga
(3.42mm) |
Honda GX630
Kohler 23hp |
| 8:46 | 27' 6"
(8.38m) |
10' 6"
(3.2m) |
16' 5"
(5m) |
19'
(5.79m) |
14ga (1.9mm) | 10ga
(3.42mm) |
Honda GX630
Kohler 23hp |
| 8:51 | 30' 8"
(9.34m) |
11' 6"
(3.5m) |
18' 6"
(5.63m) |
21'
(6.4m) |
14ga (1.9mm) | 7ga
(4.55mm) |
Honda GX660
Kohler 25hp |
| 10:36 | 21' 6"
(6.55m) |
9' 7"
(2.92m) |
13'
(3.96m) |
15' 6"
(4.72m) |
14ga (1.9mm) | 7ga
(4.55mm) |
Honda GX690
Kohler 28hp |
| 10:41 | 24' 8"
(7.51m) |
9' 6"
(2.9m) |
15'
(4.57m) |
17' 6"
(5.33m) |
14ga (1.9mm) | 7ga
(4.55mm) |
Honda GX690
Kohler 28hp |
Conventional Auger

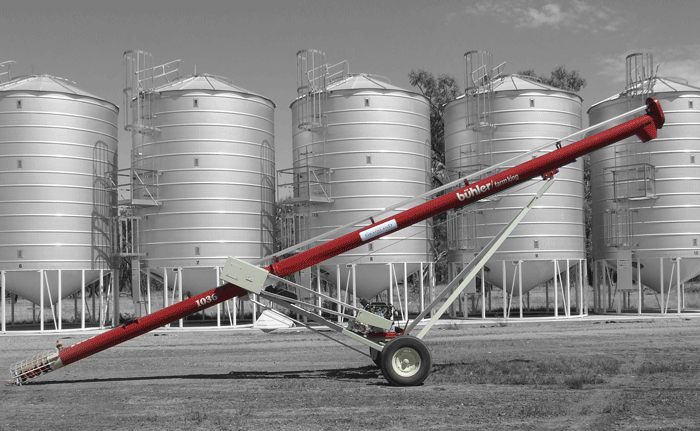

Well-designed and well-built Farm-King augers are available in 8", 10" and 13" models and come standard with reversing gearbox and double flighting intake.
Several drive options are available, including Petrol Motor, Hydraulic Drive, Electric Motor or PTO Drive. Belt-drive engine models are equipped with a self-leveling motor mount and a self-tensioning belt system.
The top drive is housed in a sealed oil bath and features a chain-tightener reducing maintenance and enhancing the longevity of the chain and sprockets.
The wide stance of the undercarriage improves stability and is constructed with square tubes to enhance strength and durability. Hydraulic mover kits are available for all Farm King augers.
|
|
Dimension A Raised | Dimension A Lowered | Dimension B Raised | Dimension B Lowered | Dimension C Lowered | Tube Gauge | Flighting Gauge | Motor Options |
| 8:36 | 18' 1"
(5.51m) |
10'
(3.04m) |
14' 10"
(4.52m) |
14'
(4.26m) |
19' 8"
(5.99m) |
14 ga (1.9mm) | 10ga
(3.42mm) |
Honda GX630
Kohler 23hp |
| 8:41 | 28' 3"
(8.61m) |
12' 2"
(3.7m) |
14'
(4.26m) |
18' 2"
(5.53m) |
21' 7"
(6.57m) |
14ga (1.9mm) | 10ga
(3.42mm) |
Honda GX630
Kohler 23hp |
| 8:51 | 35' 2"
(10.71m) |
13' 2"
(4.01m) |
15' 8"
(4.77m) |
22' 1"
(6.73m) |
26' 10"
(8.17m) |
14ga (1.9mm) | 10ga
(3.42mm) |
Honda GX660
Kohler 25hp |
| 10:36 | 16' 8"
(5.08m) |
9' 5"
(2.87m) |
13' 3"
(4.03m) |
13' 8"
(4.16m) |
20' 8"
(6.29m) |
12ga (2.66mm) | 7ga
(4.55mm) |
Honda GX630
Kohler 23hp |
| 10:41 | 28' 3"
(8.61m) |
10' 5"
(3.17m) |
13' 11"
(4.24m) |
18' 1"
(5.51m) |
21' 5"
(6.5m) |
12ga (2.66mm) | 7ga
(4.55mm) |
Honda GX690
Kohler 28hp |
| 10:51 | 35' 2"
(10.71m) |
12' 10"
(3.3m) |
16' 10"
(5.13m) |
22' 2"
(6.75m) |
26' 9"
(8.15m) |
12ga (2.66mm) | 7ga
(4.55mm) |
Kohler
34hp |
| 10:61 | 42'
(12.8m) |
13'
(3.96m) |
21' 5"
(6.52m) |
29' 2"
(8.89m) |
30' 6"
(9.29m) |
12ga (2.66mm) | 7ga
(4.55mm) |
Kohler
40hp |
| 13:36 | 19'
(5.79m) |
9' 9"
(2.97m) |
13' 2"
(4.01m) |
14' 3"
(4.34m) |
19' 5"
(5.91m) |
12ga (2.66mm) | 1/4 "
(6.35mm) |
Kohler
40hp |
GHR Galvanised Series
The GHR series are available in 8", 10" diameters and feature a Galvanised Main Barrel with the option of either Electric, Hydraulic or PTO drive. The wear-edge on the intake flighting ensures maximum performance and longer life.
|
|
Dimension A Raised | Dimension A Lowered | Dimension B Raised | Dimension B Lowered | Drive Options |
| 8:36 | 24' 10"
(7.56m) |
9'
(2.7m) |
11' 2"
(3.4m) |
16' 3"
(4.95m) |
PTO, Electric
Hydraulic |
| 8:41 | 28' 7"
(8.7m) |
9' 7"
(2.92m) |
12' 8"
(3.86m) |
18' 8"
(5.68m) |
PTO, Electric
Hydraulic |
| 8:51 | 35'
(10.6m) |
11' 11"
(3.63m) |
15' 10"
(4.82m) |
23' 10"
(7.26m) |
PTO, Electric
Hydraulic |
| 8:56 | 38'
(11.58m) |
11' 5"
(3.47m) |
16' 2"
(4.92m) |
25'
(7.62m) |
PTO, Hydraulic |
| 8:61 | 41'
(12.49m) |
11' 8"
(3.55m) |
19'
(5.79m) |
27' 4"
(8.33m) |
PTO, Hydraulic |
| 10:51 | 35'
(10.66m) |
11' 11"
(3.63m) |
15' 10"
(4.82m) |
23' 10"
(7.26m) |
PTO, Hydraulic |
| 10:61 | 41'
(12.49m) |
11' 8"
(3.55m) |
19'
(5.79m) |
27' 4" | PTO, Hydraulic |
